Executive Summary
Unit

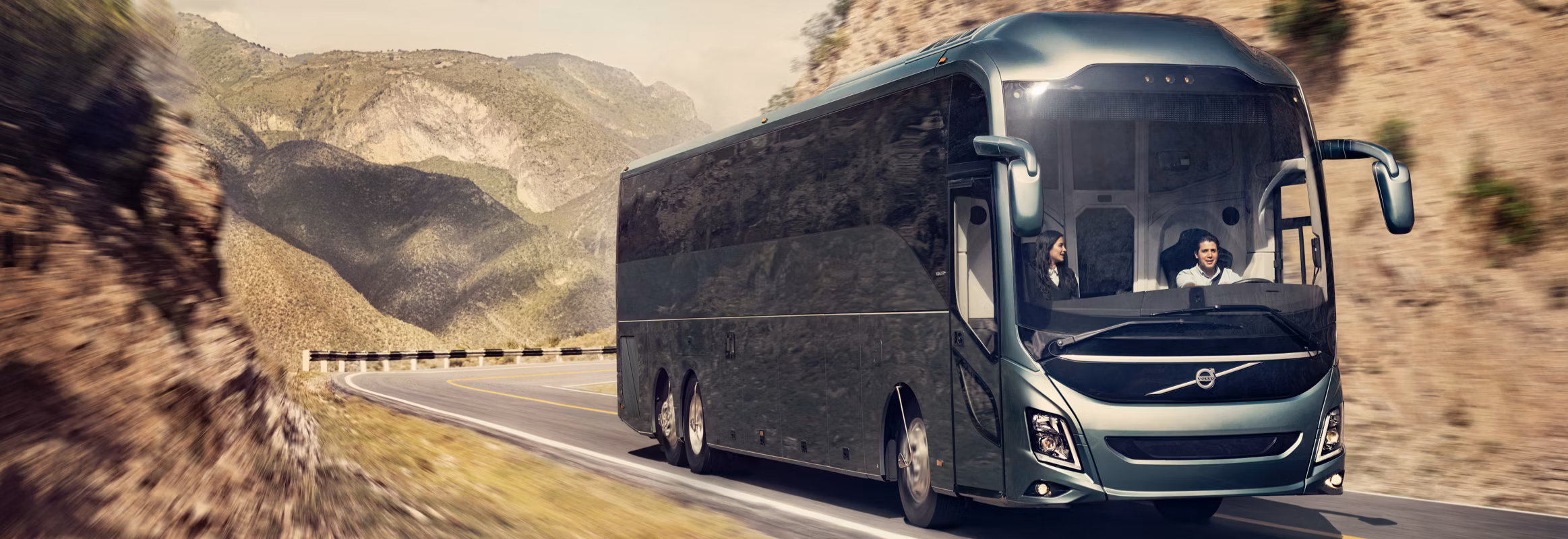

Volvo DD 9800 No. 507 (2023)
Engine
D13C 12.8L, 24 VDC
System Installed
360ES-PEM-H2+O2
Objective
Increase range and usable power, improve combustion quality, reduce carbon deposits, and validate repeatable operational benefits for commercial fleets.
Verified Field Results (Test Run)
Before
7.06 MPG
(3.0 km/L)
After 360ES-PEM
8.47 MPG
(3.6 km/L)
+20%
Relative Fuel Efficiency Improvement (+1.41 MPG)
Test Segment: Real-world route validated by odometer
Odometer Start: 1,287,622.8 km (800,090.6 mi)
Odometer End: 1,288,776.7 km (800,462.1 mi)
Distance Covered: 1,153.9 km (716.5 mi)
System Description & Safety
Safety Features & Components
- ‣PEM electrolysis cell producing controlled H2+O2
- ‣Dosing valves, backflow prevention, filters
- ‣Sensors for water level, cell temperature, line pressure/flow, and leak detection
Control and Protections
- ‣Microcomputer reads RPM, MAP/MAF, intake temperature, and throttle position
- ‣Real-time per-second adjustment of electrolysis rate and H2+O2 dosing
- ‣Automatic shutdowns for low/high water level
How It Works: The Physical Mechanism
H2 Promotes Ignition
Hydrogen increases flame speed and stabilizes ignition in locally lean mixtures, reducing unburned fuel.
O2 Complementary Comburent
As the oxidizing agent, injecting localized O2 increases immediate oxidizer availability in the air-fuel mixture, accelerating reaction rates and improving thermal efficiency per cycle.
Microcomputer Dosing
The system doses H2+O2 by the second according to engine regime and load, concentrating its effect where gain is highest (steady cruise, moderate loads).
Net Operational Outcomes
More Complete Combustion
Faster Burn
Reduced Soot/Carbon
Cleaner Engine
Increased Usable Torque
More Power
Lower Thermal Load
Cooler Operation
Effects on Torque Response and Component Life
- Increased torque per cycle due to higher effective cylinder pressure from more complete combustion.
- Improved transient response, requiring less throttle to maintain or regain speed on grades.
- Reduced thermal stress, leading to lower oil and coolant temperatures under sustained operation.
- Preserved injector geometry means fewer carbon deposits, extending effective injector performance and maintenance intervals.
Projected Range Increase
Base MPG: 7.06
Base Miles
1,119 mi
+15% MPG
1,287 mi (+168)
+20% MPG
1,343 mi (+224)
Added Miles per 1k
150-200 mi
"For Unit 507, the system projects an increase of 168-224 miles per tank, with a fleet-level benefit of 150-200 extra miles per 1,000 miles driven under favorable conditions."
Operational KPIs for Pilots and Rollout
- MPG measured in windows of 40-60 min runs (3+ ON/OFF cycles per vehicle).
- Miles per tank vs. actual distance between fuel-ups and gallons recorded.
- Delta torque and response via onboard telematics during acceleration and steady cruise.
- Oil and coolant temperature averages during sustained operation.
- Visual inspections for carbon deposit reduction at 30, 60, 90 days with photos.
- System logs: H2 production, O2 dosing, alarms, and events.
Conclusion
The 360ES-PEM-H2+O2 installation on Unit 507 demonstrates a practical capture of hydrogen’s combustion advantages. The system delivered a reproducible gain of +15-20% miles per tank under realistic field conditions, supported by both lab evidence (NASA) and this field validation.
Key benefits observed and validated include:
- Increased Per-Cycle Torque: More power when it's needed.
- Extended Tank Range: An increase of 150-224 extra miles per tank.
- Improved Throttle Response: Less throttle required to maintain or regain speed.
- Reduced Carbon Deposits: Preserved injector geometry and extended maintenance intervals.
Coupling field results to NASA technical reports provides a robust narrative for operations teams and commercial decision-makers, setting realistic performance expectations and a clear commercial pathway for adoption.
